Features:

Built-in Intel® Atom™ D510 Dual Core 1.66GHz processor
Internal wireless communication (3.5G, GSM/ GPRS, WLAN, BT)
Smarter ignition power on/off, delay-time and low voltage protection
PCI-104 and mini card expansion interface
8~60V wide range DC power input
Dual VGA output (clone mode)
Rugged fanless design to meet MIL standard

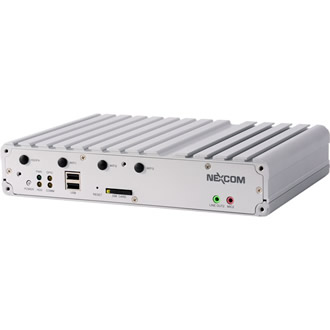

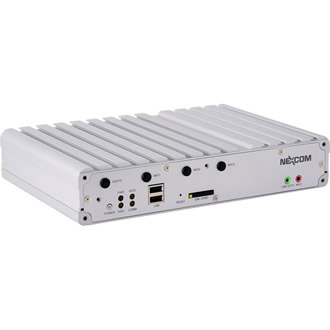

Bit-RVC 0016D-CAR

Intel® Atom™ D510 Fanless In-vehicle Computer

Main Chipset	ICH-8M
CPU	Intel® Atom™ D510 Dual Core 1.66GHz
Memory	DDR2 667/ 800 one 200-pin SO-DIMM up to 2GB
Expansion	Mini-PCIe socket (PCIe + USB) x 1 (for WLAN module) Mini-PCIe socket (USB) x 1 (for 3.5G module) 1 x Bluetooth module (optional) 1 x GPS module PCI-104 x 1

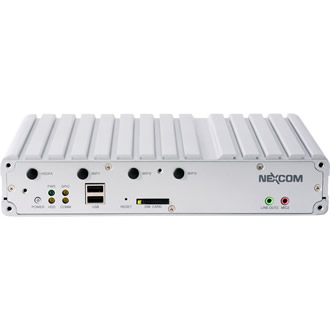

I/O Interface-Front	5 x LED's for power stand-by (on power button), Power Status, HDD, WLAN/ HSDPA and GPIO Power button 2 x USB port 1 x SIM card socket System reset button 1 x Mic-in, 1 x Line-out 4 x SMA Antenna holes for WLAN/ HSDPA/ BT

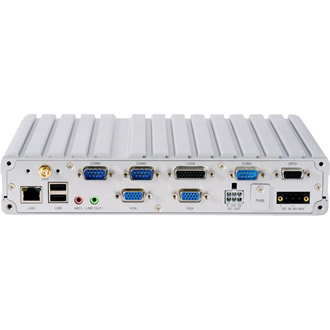

I/O Interface-Rear	1 x SMA antenna hole for GPS 8V~60V Wide Range DC power Input, power ignition signal control (ignition, power & ground) Dual VGA Output (clone mode) 5V/ 1A, 12V/ 1A DC power output, can be controlled by S/W 1 x Mic-in, 1 x Line-out 2 x RS232 (COM1/2) 1 x RS485 (COM3) 2 x USB 2.0 1 x LVDS (DB26 female connector with backlight power (+12V) and USB 2.0 x 1) 10/ 100/ 1000 Fast Ethernet, RJ45 with LED connector x 1 GPIO x 1 (4 input & 4 output) FUSE
Expandable Storage	SATA 2.5" HDD Bay x 1 or SATA DOM x 1
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level on/ off delay time by software Status of ignition and low voltage status can be detected by software Support S3/ S4 suspend mode
Dimensions	260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97") 2.19 Kg (4.82 Lb)
Construction	Aluminum enclosure with fanless design
Environment	Operating temperatures: Ambient with air: -30°C to 60°C (SSD); -30°C to 50°C (HDD) Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (Non-condensing) Vibration (random): 2g@5~500 Hz with SSD; 1g@5~500 Hz with HDD (in operation) Vibration (with SSD): Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck; Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock (with SSD): Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g; Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
Certifi cations	CE approval FCC Class B e13 Mark
