Features:

Intel® Core™ i5 vPro™ Processor
Sealed Fanless All-weather Design
Sunlight-viewable Up to 6000 Nit in Direct Sunlight
USB, Serial and Ethernet Ports
Long-life Hot-swappable Twin Batteries Provide Limitless Hours of Use
Available Built-in Camera, RFID, SmartCard and Barcode Readers
Choice of 3G Gobi™ or 4G LTE Mobile Broadband

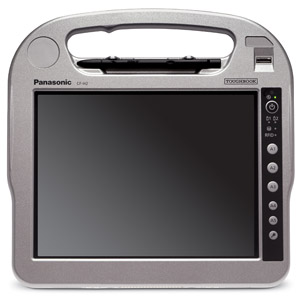

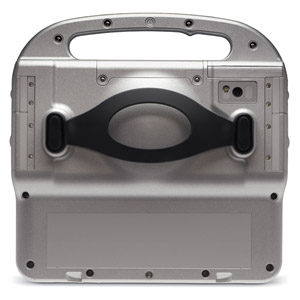

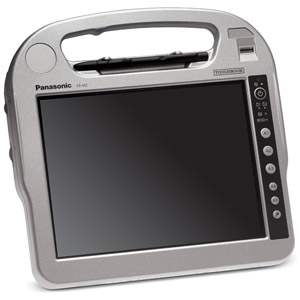

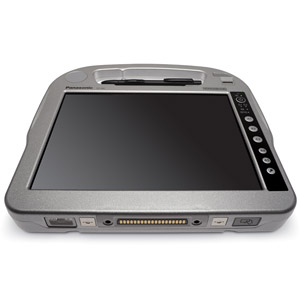

Toughbook H2

Fully-Rugged Tablet

Durability	MIL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)₁ IP65 certified1 sealed all-weather design Hard drive heater Magnesium alloy chassis encased with polycarbonate Shock-mounted flex-connect hard drive Integrated handle and ergonomic rubber hand strap Reinforced locking port covers
Software	Genuine Windows® 7 Professional 32-bit₂ or Genuine Windows® 7 Professional 64-bit₂ Panasonic Utilities (including Dashboard and Cleaning Reminder Tool), Recovery Partition
CPU	Intel® Core™ i5-2557M vPro™ Processor – 1.7GHz with Turbo Boost up to 2.7GHz – Intel® Smart Cache 3MB
Storage & Memory	4GB SDRAM (DDR3-1333MHz), expandable to 8GB3,₄ n 320GB 7200rpm hard drive (shock-mounted and flex-connect)₄ – Optional 128GB reinforced flex-connect SSD₄
Display	10.1" XGA sunlight-viewable LED 1024 x 768 dual touch – TransflectivePlus and Panasonic CircuLumin™ technology – 1-6000 nit (depending on lighting conditions and settings)₅ – Anti-reflective, anti-glare screen treatments and circular polarizer – Ambient light sensor Intel® QM67 video controller, max 1563MB shared VRAM with 32-bit₆ External video support up to 1280 x 1024 at 16.7 million colors Concealed mode
Audio	Intel® high-definition audio compliant Integrated speaker
Keyboard & Input	Dual touch LCD (touchscreen and digitizer) Integrated stylus holder 74-key on-screen keyboard with dedicated Windows® key Up to 5 user-defined programmable buttons (varies by model)
Interface	Docking connector - Dedicated 19-pin Serial - D-sub 9-pin USB 2.0 (opt. 2nd usb port)₇ - 4-pin 10/100/1000 Ethernet - RJ-45
Wireless	Optional integrated LTE 4G mobile broadband (Fall 2011) Optional integrated Gobi™2000 3G mobile broadband Intel® Centrino® Advanced-N 6205 802.11a/b/g/n Bluetooth® v2.1 + EDR (Class 1) Security – Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP – Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
Power Supply	Twin hot-swappable Li-Ion battery packs – 7.2V, typical 3400mAh, minimum 3200mAh each battery Battery operation: 6.5 hours (with both batteries)₈ Battery charging time: 3 hours on₈ AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply
Power Management	Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
Security Features	Password Security: Supervisor, User, Hard Disk Lock Kensington cable lock slot (on optional cradle) Trusted platform module (TPM) security chip v.1.2 Computrace® theft protection agent in BIOS₉ Intel® Anti-Theft Technology Fingerprint reader Insertable SmartCard reader Contactless SmartCard reader
Integrated Features	H2 LITE Base model H2 PRO 2.0MP camera with auto focus and LED light Barcode reader H2 ELITE 2.0MP camera with auto focus and LED light Barcode reader Insertable SmartCard reader 13.56MHz Contactless RFID and SmartCard reader – ISO 15693 and 14443 A/B compliant Fingerprint reader
Warranty	3-year limited warranty, parts and labor
Dimensions & Weight	10.8"(L) x 10.6"(W) x 2.3"(H) 3.5 lbs. (with handle, strap and both batteries)
Safety Certifications	IT Equipment Safety (EN:EU, UL:US) - EN/IEC 60950-1 UL 60950-1 Medical Electrical Equipment Safety (EU) - EN/IEC 60601-1 (with battery operation) Medical Electrical Equipment Safety (Canada) - CAN/CSA-C22.2 No.601.1-M90 IT Equipment EMI (US) - FCC CFR 47 P.15 Sub B-Class B IT Equipment EMI (EU) - EN 55022/CISPR 22-Class B IT Equipment EMS (EU) - EN 55024 Industrial EMI (EU) - EN 55011/CISPR 11-Class B Radio (US) - FCC CFR 47 P.15 Sub C Radio (Canada) - RSS-210 SAR (US) - FCC CFR 47 P.2
Integrated Options₁₀	LTE 4G mobile broadband (Fall 2011) Gobi™2000 3G mobile broadband (EV-DO Rev. A, HSPA) GPS receiver 2nd USB port (replaces Ethernet port) 128GB solid state drive (SSD)
Accessoires₁₀	AC Adapter (3-prong) - CF-AA6373AM Lithium Ion Battery Pack11 - CF-VZSU53W 4-Bay Battery Charger - CF-VCBU11U LIND Car Adapter 120W - CF-LNDDC120 LIND Car Adapter 120W Mounting Bracket - CF-LNDBRK120 LIND Car/AC Adapter 90W (with USB port) - CF-LNDACDC90 LIND Car Adapter 90W MIL-STD - CF-LNDMLDC90 LIND Car Adapter 80W - CF-LNDDC80 LIND Shutdown Timer - CF-LNDLPT InfoCase H2 Shoulder Strap - TBCH1SS-BLK-P InfoCase H2 Inversion Strap - TBCH1SSINV-P InfoCase H2 Always-on Sleeve - TBCH2SLVE-P InfoCase U1/H2 Battery Pouch - TBCU1BPCH-P Desktop Cradle/Spare 2-Bay Battery Charger - CF-VEBH21KU Memory Card 4GB DDR3 - CF-WMBA1004G Magnetic Micro-dock (USB x2, LAN) - CF-VEBH12U Gamber-Johnson Wall/Cart Mount - TBD Gamber-Johnson Wall/Cart Mount (no electronics) - TBD Gamber-Johnson Vehicle Dock (no pass-through) - 7160-0348 Gamber-Johnson Vehicle Dock (no electronics) - 7160-0349 Replacement Stylus - CF-VNP011U Tether - CF-VNT003U 10.1" LCD Protector Film - CF-VPF13AU
Please consult your reseller or Panasonic representative before purchasing. ₁ Tested by a national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit drop test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65. Stylus has passed IP65 testing but has not been certified. ₂A full set of Windows XP drivers are available at panasonic.com/toughbook/support. ₃Total usable memory will be less depending upon actual system configuration. ₄1GB = 1,000,000,000 bytes. ₅ 500 nit without ambient light assistance. Up to 6000 nit in clear, sunny conditions under direct sunlight. ₆ The size of the VRAM cannot be set by the user and varies by operating system as well as size of RAM. Windows 7 64-bit max. VRAM is 1696MB with 4GB of memory. ₇Replaces Ethernet port. ₈ Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2007. ₉Requires software and activation to enable theft protection. ₁₀ Accessories and Integrated Options may vary depending on your configuration. ₁₁7.2V, 2900mAh.
