Features:

- Optimized for vehicle use – outperforms handhelds and tablets in vibration environments.
 - Easy to move between different vehicles and locations.
 - Personalize device to minimize abuse.
 - Removable for anti-theft reasons.
 - Simple installation and service/upgrade.

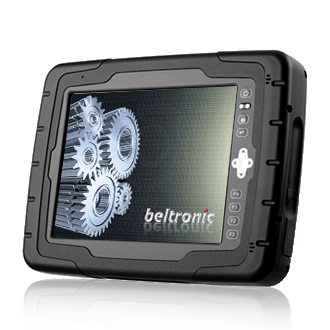

The Bit-RTC 0816 is the first computer in a new series designed to be used fixed-mounted in environments with a lot of vibrations, such as vehicles or process industry, but still be portabel for flexibility.
We call this Flexible Fixed! As durable as a fixed-mount computer but with the flexibility like a handheld device.
The Bit-RTC 0816 comes with the powerful Atom N270 processor at 1.6GHz, 2GB internal memory and runs HDD or SSD.
A new improved vehicle dock is accompanying the jFlex, to further extend the life time expectancy for a device in this class.
Basic system | |
Size  | L260 x H198 x W43  |
Weight  | 1,9 kg  |
Processor  | Intel Atom 1.6GHz N270  |
RAM  | 2048MB  |
Boot media  | HD 80GB automotive, SSD 16, 32 or 64GB  |
Display  | 8.4” SVGA (800x600), 450 NIT  |
Touch screen  | Resistive 4-wire Touch Screen  |
Operating system  | Windows Embedded standard, Windows 7 Pro, Windows XP Pro  |
Interface  | 1 external USB 2.0, DC-input, Docking connector, 1 RJ45 Ethernet  |
Power supply  | 9–21 VDC, Battery 44Wh, 7.3V  |
RF options  | WLAN 802.11n and Bluetooth 2.0 EDR. class 1  |
Accessories  | Mounting solutions, Rugged keyboards, Cables and adaptors, GPS, 3G-modems  |
Vehicle Dock  | 3x USB ports, 2x RS232, 9-36 VDC  |
Environment | |
Temperature  | Non-operating -30°C to 70°C, Operating -20°C to 50°C  |
Sealing level  | 10 - 95% RH, non-condensing, Water & Dust proof, IP65  |
Vibration  | 5 - 500 Hz/4.5 g RMS 3 hours X Y Z (non-rotating disks)  |
Shock  | 30 g for 11 ms (non-rotating disks)  |
Drop test  | 3 feet on concrete  |
Housing  | Aluminium, powder coated  |

- Vehicle dock


- Power AC/DC Molex with Cable


- Extra Battery


- Cable Power Lighter/DC-plug


- Sacci Hook


- Passive Dock

coming soon
