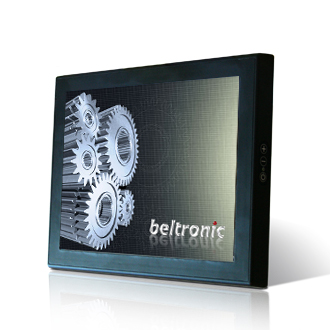

Bit-RVC 1516D
The Bit-RVC 1516D combines our rugged technology with the screen-size of a standard laptop. An excellent solution both in industrial applications and for vehicle mounting.
It comes with a 15.1” XGA, 400 NIT, sunlight viewable touch screen with instant screen blanking feature and 100% dimability. The performance almost equals that of a normal PC. One-piece construction, fully sealed and ultra thin. The milled aluminum case design ensures the ruggedness of the units and the ability to handle temperature extremes.
Daylight-viewable display makes using the 1516D easier on bright days - Extremely flexible power range, accepting voltages from 9 VDC to 36 VDC. This allows the Bit-RVC 1516D to connect to all types of vehicles and their batteries. - Multiple mounting options are available.
Basic System | High-End System | |
Size | L358 x W286 x H61 | L358 x W286 x H61 |
Processor | Atom 1.6 GHz | Core Duo 1.66 GHz |
RAM | 1024MB DDR-SDRAM | 2048MB DDR-SDRAM |
Boot media | 80GB Automotive Hard drive | 32GB Industrial Flash drive |
Display | 15.1” XGA, 400 NIT | 15.1” XGA, 750 NIT |
Touch screen | 5-wire | Yes 5 wire |
Operating system | Windows XP Embedded | Windows XP Professional |
Warranty | 1 year | 3 year |
Power supply | 9-36V DC Power supply | 9-36V DC Power supply |
Communication | 1 Ethernet, 2 USB2.0, 2 PC-Card slots, 2 COM ports, 1 Firewire | 1 Ethernet, 2 USB2.0, 2 PC-Card slots, 2 COM ports, 1 Firewire |
Graphics | 32 MB (Uses RAM memory) | |
Boot-device | Compact Flash, Dual Slot or 2,5" IDE HDD | |
PC card slots | CARDBUS 32-bit 2 type II or 1 type III | |
Sound | AC97 and Soundblaster Pro compatible, integrated Speakers | |
Weight | 5,3 kg | |
Ports | 2 Serial ports RS 232C (COM 1-2, up to 115 Kbit/s) 2 USB type A 1 FireWire 1 Ethernet 10/100-TP, RJ45 1 Mouse/Keyboard port (PS/2) Buzzer, Mic, CD in and Line out Stereo Optional ports: Extra RS232, VGA out | |
| ||
Temperature | Non-operating -30°C to 75°C, Operating -30°C to 50°C | |
Sealing level | 10 - 95% RH, non-condensing, Water & Dust proof, IP65 | |
Vibration | 5 - 500 Hz/4.5 g RMS 3 hours X Y Z (non-rotating disks) | |
Housing | 30 g for 11 ms (non-rotating disks) | |
Shock | Aluminium, powder coated | |
