Features:
- Rugged and Stable Aluminium Case
- Intel Pentium L7400 Core 2Duo Processor (1,5 GHz)
- Vibration & Drop-shock Resistant
- Operating temperature –32°C to +55°C with Intelligent preheating System
- MIL-STD 810F and IP54 compliance
- High Customized product with 2 x PCI or 2 x PCI-e slots

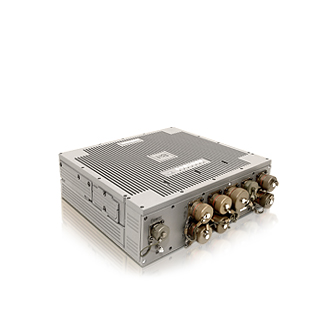

Bit-RVC 0016-MIL
Bit Tradition Rugged Industrial Computer products extends the range of our product into the Harsh Industrial and Military Markets, sacrificing nothing of the ergonometric design in our work but meeting the rugged demands head on. Resistance to humidity, dust, shock and vibration is achieved by the complex and unique engineering of the electronic as well as an enclosure (case). Built on the principles of a ship's porthole, the success of the Beltronic Systems rests on the fundamentals of strong design and reliability.
Operating System | Genuine Windows Vista® Business Genuine Windows® XP Professional Genuine Windows® 7 Professional |
Mobile Computing Platform | Intel® CoreTM Duo L2400 1.66GHz processor or Intel® CoreTM2 Duo L7400 1.5GHz processor 667 MHz FSB 2MB or 4MB L2 cache |
VGA Controller | Intel® 945GM 128MB shared memory |
Storage & Memory | 2GB DDR2 expandable to 4GB* SATA 160GB HDD; optional 320GB** |
Expansion Slots | PCMCIA Type II x 2 PCMCIA Type III x 1 |
Multimedia Bay | Optional Super multi DVD Optional 2nd battery Optional 2nd HDD 120 GB (IDE) |
X Bay | Optional RS232/422 Optional 2nd PCMCIA (Type II x 2 or Type III x 1) Optional smart card reader Optional Bluetooth (v2.0 + EDR class 1) Optional GPS (with mouse type antenna) Optional GSM / GPRS / EDGE / UMTS / HSDPA Optional Bluetooth + GPS Optional Bluetooth + GSM / GPRS / EDGE / UMTS / HSDPA Optional GPS + GSM / GPRS / EDGE / UMTS / HSDPA Optional Bluetooth + GPS + GSM / GPRS / EDGE / UMTS / HSDPA |
IO Interface | 1 x RS232 (customized or MIL connector) 2 x USBTV USB 2.0 Ports 18-32 V DC (customized or MIL connector) 1 x IEEE 1394B Port Parallel port, EPP/ECP compatible (customized or MIL connector) Video for external analog CRT / Beamer (customized or MIL connector) Headset output, Microphone input jack RJ-Field TV 10/100/1000 |
Communication Interface | 10/100/1000 base-T Ethernet 56K ITU V.92 modem Intel® PRO/Wireless 3945ABG Network Connection; 802.11 a/b/g Optional Bluetooth (v2.0+EDR class 2) Optional GPS Optional GSM / GPRS / EDGE / UMTS / HSDPA |
Software | Adobe® Reader® Computrace ® Compatible BIOS Nero 8 |
Security Feature | Optional fingerprint scanner TPM 1.2 & Cable lock slot |
Power | AC adapter (90W, 100-240V, 50/60Hz) Li-Ion smart battery (7800mAh) Media bay 2nd Li-Ion battery (5200mAh) - option X bay 3rd Li-Ion battery (5200mAh) - option |
Dimensions & Weight | 13.1” x 11.0” x 3.4” (332.2 x 279 x 85.4 mm) 13.0 lbs (5.9 kg)***) |
Rugged Features | Ultra rugged MIL-STD 810G and IP54 Compliant Optional MIL-STD 461F compliant Full magnesium alloy case Shock-protected removable HDD Vibration & drop resistant |
Environmental Specification | Operating temp: 32°F to 140°F / 0°C to 60°C (Optional low temperature: -4°F/-20°C) Storage temp: -40°F to 158°F (-40°C to 70°C) Humidity: 5% to 95% RH, non-condensing |
