Features:
- 90-264V AC Power standard, (optional 12VDC, 24VDC or 9-36VDC available)
- Touch Screen: Capacitive or Resistive Touch
- NEMA 4 or 4X (IP65/IP66) Protection
- Sunlight Readability Technology
- Impact Resistant Protective Windows
- Custom Designs based on Customer’s Exact Needs

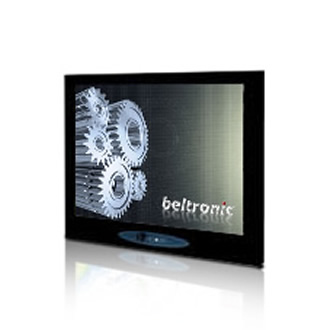

Bit-RDU Marine Grade
Fully-Rugged Tablet
A high resolution marine quality monitor that offers flexible mounting combinations such as 100mm VESA standard fixings at the rear, and a separate mounting bracket for control desk or overhead positioning. The TFT Monitor is manufactured in full compliance with IACS E10. The flat panel is designed with ECDIS and Radar in mind and to specifically meet the stringent demands of shock, vibration, EMC and EMI defined in the IEC 60945 International Standard for Maritime Navigation and Radio Communications Equipment & Systems. The monitor offers continuity by design for all navigation and ship automation applications.
21.3" Bright Active Matrix TFT Display, 250 nits (cd/m²)- Input Connectors: 2 x Phono, 15-pin HD Female D-Type, RCA + S-video socket, 9-pin Male, D-Type and 3-Pin IEC Male
- Optical Bonding for added Shock & Vibration protection and/or reduced solar reflectivity (VBOND)
- Advanced Deep Dimming 2000:1, Integrated with a deep dimming solution for the marine range which provides smooth consistent dimming to 2000:1
- Compliant to IEC 60945, IEC 61174, EN 60950
- Contrast Enhancing AR Safety Glass
- ECDIS & Radar Compliant
- Video Buffer & Remote Control
- High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality
- Wide Color Gamut
- 16.8 million colors
- Energy Efficient, Low Power Consumption
- High Environmental Performance and Reliability
- Anti-Reflective Protective Window
- UXGA (1600 x 1200) Resolution
- Wide Operational Temperature Range, -15°C to +55°C (5°F to +131°F)
- RoHS Compliant
- Engineered, Fabricated and Assembled in Germany
- Two (2) Year Warranty
Display Size | 21.3 Inch |
Panel Type | TFT Active |
Resolution Capabilities | UXGA* |
Pixel Format | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200* |
Dot Pitch | .27mm |
Active Display Area | 432mm(w) x 324mm(h) |
Viewing Angle | Left / Right: 170º Up / Down: 170º |
Contrast Ratio | 500:1 min |
Brightness | 250 nits (cd/m2) typical |
Backlight | 50,000 hours typical |
Colors Supported | 16.7 million |
Scan | Horizontal: 31-106 KHz Vertical: 60-85 Hz |
Connectors | Audio: 2 x Phono RGB Signal: 15-pin HD Female D-Type Video Signal: RCA + S-video socket RS232 Remote Control: 9-pin Male D-Type Power: 3-Pin IEC Male |
Video Input | Analog RGB 0.7-1.0V p-p, 75 ohm, DVI, PAL/NTSC & SECAM with picture-in-picture facility |
Sync | Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync - on - Green (-ve) 0.3V |
Power Source | 90-265V AC 50/60Hz |
Power Consumption | 65W max |
Temperature | Operating: -15 to 55ºC (5º to 131ºF) Storage: -20 to 60ºC (-4º to 140ºF) |
Humidity | Operating: 30 to 90%NC Storage: 10 to 90%NC |
Response Time | 25 ms average, typical |
Housing | Aluminum |
Monitor Dimensions | 20"(w) x 16.54"(h) x 3.30"(d) 508mm(w) x 420mm(h) x 83.9mm(d) |
Weight (approx) | 23.32lbs. / 10.6kg |
Mounting | Approximate Shipping Dimensions and Weight 508(W) x 420(H) x 83.9(D) mm |
Advanced Dimming | VESA format (100 mm pitch); two mounting positions (x6 fixing holes) RS232 Support |
