Features:

- 5.25”x3 +3.5”x2 drive bays for RAID 0, 1, 5 & CD-ROM
 - Two ball-bearing cooling fans for better ventilation
 - Traditional rack-mount handles
 - Two card retainer positions
 - 2 USB ports
 - One modularized function panel for
 - single(default) and dual (optional) systems
 - ATX M/B applicable, especially for big-AT
 - sized M/B
 - PS/2 redundant power supply installable

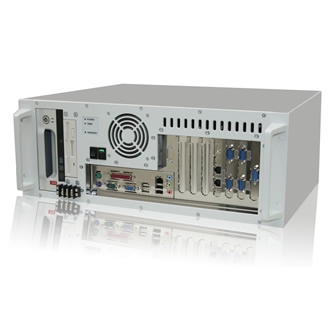

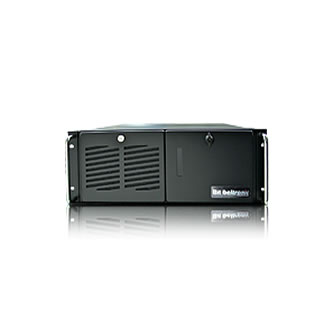

4U Rackmount Industrial Computer, Intel i7 930 2.8GHz CPU, Intel X58/ICH10R Chipset, 2GB DDR3 RAM, 80GB SATA HDD, DVD-ROM, 1xPCIe x16 /2x PCIe x8 (el. 4)/4xPCI Slots, Gbit LAN, 8xUSB, 1xCOM, Audio, 400W
- Height, Units: 4 U
 - Processor (CPU): Intel Core i7
 - Extension Cards (Extension Cards, All): 6
 - Type of Power Supply: ATX PS/2
 - Output Power: 400 W

Construction | |
Construction  | Heavy-Duty Steel Chassis  |
Mounting Configuration  | 19" Rackmount  |
Height, Units  | 4 U  |
CPU Card | |
CPU Board Form Factor  | ATX 12""x9.6""  |
Processor | |
CPU:  | Intel Core i7  |
Number of CPU:  | 1  |
CPU Socket:  | LGA 775  |
Front Side Bus Frequency:  | 1333 MHz  |
Chipset  | Intel X58 (ICH10R)  |
System Memory | |
Maximum Memory Size  | 24 GB  |
Memory Type  | DDR3 1333  |
Memory Sockets  | 6xDDR3 DIMM 240pin  |
BIOS  | Phoenix  |
VGA  | DB15, DVI (HDMI over PCI Express x16 Grafikadapter)  |
Ethernet | |
Channels:  | 1  |
1000Mbps:  | 1  |
Connector:  | RJ45 (Realtek 8111DP)  |
Serial ATA | |
Controller  | Chipset Integrated  |
Channels  | 6  |
RAID Controller | |
Type  | Chipset Intergrated  |
RAID Level  | Level 0, Level 1, Level 5, 10  |
USB | |
Ports  | 8  |
Specification  | Rev. 2.0  |
Realtek ALC663 5.1  | |
Audio  | 1...255 sec  |
Watch Dog Timer  | |
Extension Slots | |
Extension Cards  | 6  |
Extension Cards, All  | |
Extension Slots  | 4  |
PCI  | 2 (electrical PCIe x4)  |
PCI Express x8  | 2 (one is used by Grafikadapter)  |
PCI Express x16  | |
Disk Drive Bays | |
5.25" Drive Bays  | 3  |
All  | 3  |
Open  | |
3.5" Drive Bays  | 2  |
All  | 1  |
Open  | 1  |
Hidden  | |
Front Panel | 1xOn/Off, 1xReset  |
Switches  | 1xHDD LED, 1xOn/Off LED  |
LEDs  | 2xUSB  |
Connectors  | |
Cooling  | 1x8cm, 1x12cm  |
Fans  | No  |
Hot Swappable Fan  | Yes  |
Removable Air Filter  | |
Power Supply  | ATX PS/2  |
Type of Power Supply  | 400 W  |
Output Power  | |
Input Voltage Range  | 90...264 V  |
Operation | |
Temperature  | 0...+50 °C  |
Humidity  | 5...95 %  |
Storage | |
Temperature  | -20...+70 °C  |
Humidity  | 5...95 %  |
Dimensions and Weight | |
Width  | 482 mm  |
Height  | 177 mm  |
Depth  | 450 mm  |
Color | Beige, Black  |
Certifications | |
Standard Compliance  | RoHS  |
