- Solid state SATA hard drive
- Hard Drive Expandable
- Windows Embedded Standard or Windows 7

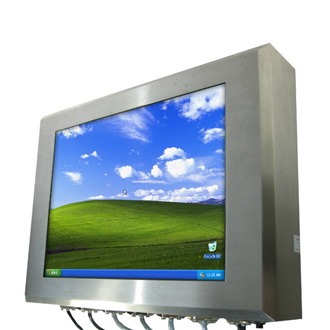

Bit-RDU Class 1, Division 2
Fully-Enclosed Touch Screen
The Bit-RDU Class 1, Division 2, 19" NEMA 4X (IP66) fully enclosed touch screen computer offers extensive features, is housed in a gasket sealed 316-type stainless steel enclosure, is incorporated with a 300 nit (cd/m²) bright active matrix TFT display and is integrated with Intel’s Atom N270 1.6GHz Processing Technology. The system multi-functional, user friendly system has no external vents, so nothing can get under its skin; including weather, dust, dirt, moisture, oil, chemicals or other harsh contaminants. With its lightweight yet rugged construction this VESA mount model is easily mounted on walls, stands, arms or other industrial equipment.
This product has been tested and examined by an independent agency and found to comply with the applicable requirements of UL60950-1/CSA C22.2 No. 60950-1, UL1604 Electrical Equipment for Use in Class I and II, Division 2, and Class III Hazardous (Classified) Locations, CSA C22.2, Non-incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations.
Independently Tested and Certified for Class 1 Division 2 Applications- 19" Bright Active Matrix TFT Display, 300 nits (cd/m²)
- Powered by Intel
- Atom N270 1.6GHz Processor
- 2 GB 200-pin SO-DIMM DDR 333/400MHz
- 100mm VESA Pattern Mounting
- 320 GB SATA Fast Access Disk Drive
- NEMA 4X (IP66) Enclosure, Stainless Steel 316
- Sealed Connections for USB, Serial, Ethernet and Power
- 120-240 VAC 1.5A 50/60 Hz Power
- Resistive Touch Screen Standard
- Windows XP Professional Operating System (optional Windows Embeddedor or Windows 7)
- High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality
- Wide Color Gamut
- 16.8 million colors
- Energy Efficient, Low Power Consumption
- High Environmental Performance and Reliability
- SXGA (1280 x 1024) Resolution
- Wide Operational Temperature Range, -10°C to +60°C (14°F to +140°F)
- RoHS Compliant
- Engineered, Fabricated and Assembled in Germany
- Two (2) Year Warranty
Display | 19" SXGA TFT LCD |
Resolution | 1280 x 1024 |
Pixel Pitch | 0.294mm |
Display Colors | 16.7M |
Brightness | 250 nits cd/m2 |
Contrast Ratio | 1000:1 |
Response Time | 12 ms |
Viewing Angles | 178°V / 178°H |
Power Input | 120-240 VAC 1.5A 50/60 |
Processor | Intel® Atom™ N270, 1.6 GHz Processor with a 533 Mhz FSB |
BIOS | AMI BIOS |
O/S | Microsoft XP Professional (optional Windows Embedded Standard or Windows7) |
System Memory | 2GB 1DDR2 533 SO-DIMM |
Hard Drive | 320 GB Fast Access SATA (optional Solid State SATA Hard Drive) |
VGA | Intel Generation 3.5 integrated GFX Core (133Mhz) |

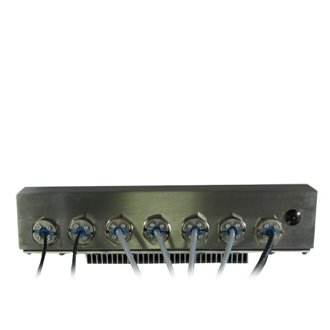

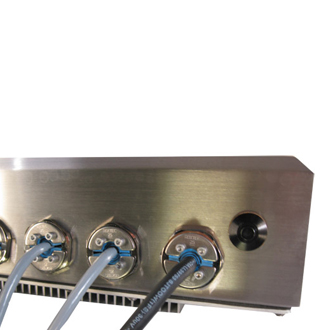

Sealed I/O | 1 LAN port 2 RS-232 COM port 3 USB 2.0 ports 1 Power On/Off 1 Power Connector |
LAN | PCIe Realtek 8111CP GbE |
Connections | Sealed connections for USB, Serial, Ethernet, and Power |
Temperature | Operational: -10° to 60°C (14° to 140°F) Storage: -40° to 65°C (-40° to 149°F) |
Humidity | Operational: 0 to 90% RH NC Storage: 0 to 95% RH NC |
Touch Screen | Resistive Standard |
Construction | Class 1 Div 2 Certified, Fully Enclosed, NEMA 4X (IP66) 316 - Stainless Steel, Gasketed |
Approximate Shipping Dimensions and Weight | 24" x 26" x 10" (W x L x H) / 38lbs. |
