Features:
- Fully Sealed IP67 (NEMA 6) Submersible Machined Aluminum Enclosure
- Harsh Duty LCD Panel w/ Optically Bonded Overlay
- True High Brightness Low Power, high reliability Solid State LED Backlighting
- VarTech’s advanced VTLED driver technology
- Ultra
- Wide Viewing Angles , Very High Contrast
- Extreme Wide Operational Temperatures
- One
- Touch Toggle Between Multiple Video Feeds

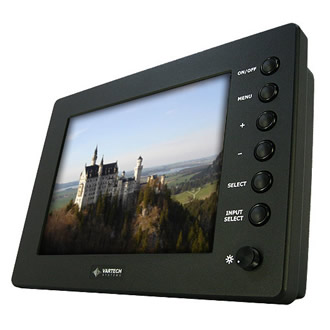

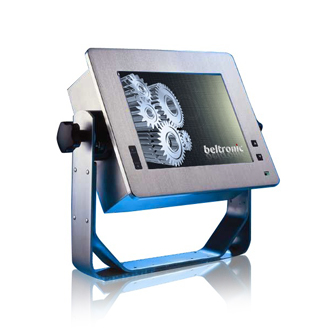

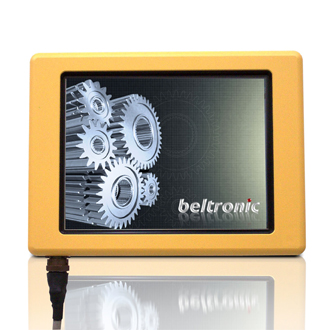

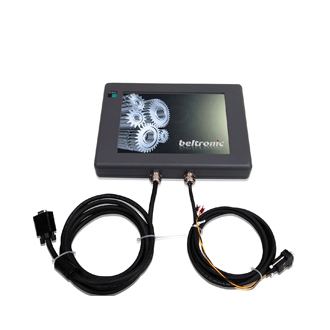

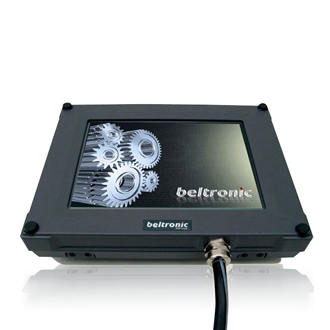

Bit-RDU Mobile LCD
Fully-Enclosed Touch Screen
Bit-RDU Mobile LCD's All-Weather, All-Terrain series are waterproof, totally sealed IP67 (NEMA 6) LCD displays. These ultra-rugged, harsh-duty sunlight readable LCD displays are engineered for the most demanding applications and provide exceptional corrosion resistance and protection from direct or windblown dust and rain, splashing water, snow, ice formation and even temporary submersible. Our weather proof lcd displays are designed for extreme environments and integrated with the latest optical technology for unparalleled Sunlight Readability, this series provides users with a reliable, high-resolution display with exceptional clarity, wide viewing angles, and extensive operational temperatures (-40°C/-40°F to +70°C/+158°F).
coming soon
coming soon
Bit-RDU Mobile 8.4" All-Weather, All-Terrain, Harsh-Duty LCD Display System is waterproof (fully submersible) and engineered to withstand the harshest environments and most demanding real world applications. This high resolution SVGA 800 x 600 native (optional XGA 1024 x 768), is equipped with Bit-RDU Mobile LCD's proprietary Enhanced Light Transmission Technology (ELTT) which allows for true Sunlight Readability and as well provides exceptional clarity and viewing angles. This advanced user friendly LCD display system provides extensive operational temperatures of -20° to +70°C (-4° to 158°F) standard or -40°C to 70°C (-40° to 158°F) optional and unprecedented video input capabilities from traditional VGA to up to FOUR individual direct composite BNC video feeds with easy one-touch toggle select function between all feeds!
Construction | IP67 (NEMA 6) Fully-Enclosed Submersible Machined 6061 T6 Aluminum Enclosure |
Display Size – Viewable Area | 8.4 inches |
Panel Type | Harsh Duty LCD cell w/ Optically Bonded Protective Overlay (VBOND) |
Resolution | Standard: SVGA 800 x 600 Native Optional: XGA 1024 x 768 native |
Brightness | True High Brightness: Standard SVGA Type: 1500 nits (cd/m2) Optional XGA Type: 1100 nits (cd/m2) Low-Power, high reliability Solid State LED Backlighting |
Pixel Pitch | 0.213 x 0.213 (Optional 0.1665 x 0.1665 w/ XGA) |
Response Time | 25ms (25ms with XGA panel) |
Color | 16.77 M |
Dimming Ratio | 5000:1 minimum |
Backlight Driver | VarTech’s advanced VTLED driver technology, the latest in technology for driving solid state High Bright Light Emitting Diodes (HBLEDs) |
Viewing Envelope | Standard SVGA: Up/Dwn/L/R: 80°/60°/80°/80° Optional XGA: Up/Dwn/L/R: 88°/88°/88°/88° |
Contrast Ratio | Standard SVGA Type: 600:1 Optional XGA Type: 400:1 |
Video Input | - IP67 Sealed VGA Connector for Computer interface |
OPTIONAL | - IP67 Sealed Single VGA Connector, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single VGA Connector, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single Composite BNC Feed for NTSC/PAL - IP67 Sealed Dual Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Three Separate Composite BNC Feed for NTSC/PAL - IP67 DVI Input only or with various combinations including VGA and BNC video feeds - IP67 Sealed Four Separate Composite BNC Feed for NTSC/PAL COMING SOON, CALL - IP67 Sealed Dual VGA Connectors with/without Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Single CompositeBNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface |
Electrical Input | Harsh Duty Variable Power Supply, 9 to 36 VDC, Wide Range, Low Noise, Wide Operational Temperature (Optional AC Power, Universal Input 85 to 264 VAC) |
Max Power Requirements | SVGA Panel - 25 watts, 32 watts w/heater XGA Panel - 38 watts, 45 watts w/heater |
Video Controller | VarTech’s Harsh Environment Controller Board Backlight MTBF 65,000 hours |
Wide Operational Temperatures | Standard: -20° to +70°C (-4°F to 158°F) Optional: -40° to +70°C (-40°F to 158°F) |
Storage Temperature | -40° to +75°C (-40°F to 167°F) |
Dimensions | W - 10.742", H - 7.809", Depth - 2.59" |
Humidity | Operating: 0 to 100% |
Altitude | 10,000 ft. (optional 45,000 ft.) |
EMI / EMC | Designed to meet FCC Class B (optional MIL-STD-461E) |
Shock | Designed to meet MIL-S-901D |
Weight | 5.5 lbs. Vibration Designed to meet MIL-STD-167 Designed to meet Marine IEC 60945 and IACS-E10 |
Environmental Design | Designed to meet MIL-STD-810F Airborne Equipment Environmental Conditions Designed to meet DO-160E MIL-L-85762A sunlight readability (air force - open canopy) MIL-C-22750 (CARC) Enclosure aluminum, black finish with Corrosion Protection All input connectors are rated for full submersion including: Power, VGA, Touch and BNC Composite Video and to ensure that each connector maintains its sealing, the socket is additionally tested for helium leakage (according MIL 1344A) Available Optional MIL-DTL-38999 qualified - connectors |
MIL-STD-1275 | wide range DC power input 9-36 VDC (12 VDC, 24 VDC, 28 VDC nominal) |
Cables | Length - 3m (9’10”) each Available IP67 Connector (monitor end) Cables: Power Video - 15-pin D-Sub Touch (optional) - Serial or USB Direct Composite BNC Video Feed (optional) |
Touch Screen (optional) | 5-Wire, Durable, Resistive OR Armor Touch |
Mounting | RAM/VESA Mounting - standard Flush Mounting - optional Console Mounting |
Electrical Protection | Internal Short Circuit Protection, Load Dump Protection, Over Voltage Protection, Reverse Polarity Protection |
Optional Connectors | Optional “Right Angle” Connectors |
Optional EMI/EMC | MIL-STD-461E (FCC Class B is standard) |
Warranty | 2 years |
Bit-RDU Mobile 10.4" All-Weather, All-Terrain, Harsh-Duty LCD Display System is waterproof (fully submersible) and engineered to withstand the harshest environments and most demanding real world applications. The sunlight readable VT104XA4 is equipped with Bit-RDU Mobile LCD's proprietary Enhanced Light Transmission Technology (ELTT) which allows for true Sunlight Readability and as well provides exceptional clarity and viewing angles. This advanced user friendly LCD display system provides extensive operational temperatures of -20° to +70°C (-4° to 158°F)(standard) or -40°C to 70°C (-40° to 158°F)(optional) and unprecedented video input capabilities from traditional VGA to up to FOUR individual direct composite BNC video feeds with easy one-touch toggle select function between all feeds!
Construction | IP67 (NEMA 6) Fully-Enclosed Submersible Machined 6061 T6 Aluminum Enclosure |
Display Size – Viewable Area | 10.4 inches |
Panel Type | Harsh Duty LCD cell w/ Optically Bonded Protective Overlay (VBOND) |
Resolution | Standard: SVGA 800 x 600 Native Optional: XGA 1024 x 768 native |
Brightness | True High Brightness: Standard SVGA Type: 1000nits (cd/m2) Optional XGA Type: 1000 nits (cd/m2) Low-Power, high reliability Solid State LED Backlighting |
Pixel Pitch | 0.24 x 0.24 |
Response Time | 25ms |
Color | 16.77 M |
Dimming Ratio | 5000:1 minimum |
Backlight Driver | VarTech’s advanced VTLED driver technology, the latest in technology for driving solid state High Bright Light Emitting Diodes (HBLEDs) |
Viewing Envelope | Standard SVGA: Up/Dwn/L/R: 80°/80°/80°/80° Optional XGA: Up/Dwn/L/R: 85°/85°/85°/85° |
Contrast Ratio | Standard SVGA Type: 900:1 Optional XGA Type: 700:1 |
Video Input | - IP67 Sealed VGA Connector for Computer interface |
OPTIONAL | - IP67 Sealed Single VGA Connector, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single VGA Connector, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single Composite BNC Feed for NTSC/ PAL - IP67 Sealed Dual Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Three Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Four Separate Composite BNC Feed for NTSC/PAL - IP67 DVI Input only or with various combinations including VGA and BNC video feeds - Also available with MIL-DTL-38999 connectors COMING SOON, CALL - IP67 Sealed Dual VGA Connectors with/without |
Optional Touch Interface | - IP67 Sealed Dual VGA Connectors, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface Video Controller VarTech’s Harsh Environment Controller Board Max Power Requirements 28 watts, 35 watts w/heater |
Electrical Input | Harsh Duty Variable Power Supply, 9 to 36 VDC, Wide Range, Low Noise, Wide Operational Temperature (Optional AC Power, Universal Input 85 to 264 VAC) |
Backlight MTBF | 65,000 hours |
Wide Operational Temperatures | Standard -20° to +70°C (-4°F to 158°F) Optional -40° to +70°C (-40°F to 158°F) |
Storage Temperature | -40° to +75°C (-40°F to 167°F) |
Dimensions | Width - 12.36”, Height - 9.01”, Depth - 2.59” |
Humidity | Operating: 0 to 100% |
Altitude | 10,000 ft. (optional 45,000 ft.) |
EMI / EMC | Designed to meet FCC Class B (optional MIL-STD-461E) |
Shock | Designed to meet MIL-S-901D |
Weight | 6.5 lbs |
Vibration | Designed to meet MIL-STD-167 Designed to meet Marine IEC 60945 and IACS-E10 |
Environmental Design | Designed to meet MIL-STD-810F Airborne Equipment Environmental Conditions Designed to meet DO-160E |
MIL-L-85762A | sunlight readability (air force - open canopy) |
MIL-C-22750 (CARC) | Enclosure aluminum, black finish with Corrosion Protection All input connectors are rated for full submersion including: Power, VGA, Touch and BNC Composite Video and to ensure that each connector maintains its sealing, the socket is additionally tested for helium leakage (according MIL 1344A) Available Optional MIL-DTL-38999 qualified - connectors MIL-STD-1275 wide range DC power input 9-36 VDC (12 VDC, 24 VDC, 28 VDC nominal) Product Safety 2006/95/EC, EN 60950-1:2006; CE; RoHS; |
Cables | Length - 3m (9’10”) each Available IP67 Connector (monitor end) Cables: Power Video - 15-pin D-Sub Touch (optional) - Serial or USB Direct Composite BNC Video Feed (optional) Touch Screen (optional) 5-Wire, Durable, Resistive OR Armor Touch |
Mounting | RAM/VESA Mounting - standard Flush Mounting - optional Console Mounting Electrical Protection Internal Short Circuit Protection, Load Dump Protection, Over Voltage Protection, Reverse Polarity Protection Optional Connectors Optional “Right Angle” Connectors, MIL-DTL-38999 qualified - connectors MIL-STD-461E (FCC Class B is standard) |
Warranty | 2 years |
Bit-RDU Mobile 12.1" All-Weather, All-Terrain, Harsh-Duty LCD Display System is waterproof (fully submersible) and engineered to withstand the harshest environments and most demanding real world applications. The sunlight readable VT121XA4 is equipped with Bit-RDU Mobile proprietary Enhanced Light Transmission Technology (ELTT) which allows for true Sunlight Readability and as well provides exceptional clarity and viewing angles. This advanced user friendly LCD display system provides extensive operational temperatures of -20° to +70°C (-4° to 158°F)(standard) or -40°C to 70°C (-40° to 158°F)(optional) and unprecedented video input capabilities from traditional VGA to up to FOUR individual direct composite BNC video feeds with easy one-touch toggle select function between all feeds!
Construction | IP67 (NEMA 6) Fully-Enclosed Submersible Machined 6061 T6 Aluminum Enclosure |
Display Size – Viewable Area | 12.1 inches |
Panel Type | Harsh Duty LCD cell w/ Optically Bonded Protective Overlay (VBOND) |
Resolution | Standard: SVGA 800 x 600 Native Optional: XGA 1024 x 768 Native |
Brightness | True High Brightness: Standard SVGA Type: 1000 nits (cd/m2) Optional XGA Type: 1100 nits (cd/m2) Low-power, high reliability Solid State LED Backlighting |
Pixel Pitch | 0.3075 x 0.3075 (Optional 0.24 x 0.24 with XGA panel) |
Response Time | 25ms (Optional 33ms with XGA panel) |
Color | 16.77 M |
Backlight MTBF | 65,000 hours |
Dimming Ratio | 5000:1 minimum |
Backlight Driver | VarTech’s advanced VTLED driver technology, the latest in technology for driving solid state High Bright Light Emitting Diodes (HBLEDs) |
Viewing Envelope | Standard SVGA: Up/Dwn/L/R: 80°/60°/80°/80° Optional XGA: Up/Dwn/L/R: 45°/55°/70°/70° |
Contrast Ratio | Standard SVGA Type: 600:1 Optional XGA Type: 600:1 |
Video Input | - IP67 Sealed VGA Connector for Computer interface OPTIONAL - IP67 Sealed Single VGA Connector, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single VGA Connector, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single Composite BNC Feed for NTSC/PAL - IP67 Sealed Dual Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Three Separate Composite BNC Feed for NTSC/PAL - IP67 DVI Input only or with various combinations including VGA and BNC video feeds - IP67 Sealed Four Separate Composite BNC Feed for NTSC/PAL - Also available with MIL-DTL-38999 connectors COMING SOON, CALL - IP67 Sealed Dual VGA Connectors with/without Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface |
Video Controller | VarTech’s Harsh Environment Controller Board – MTBF in Excess of 260,000 hours |
Max Power Requirements | 32 watts, 40 watts w/heater |
Electrical Input | Harsh Duty Variable Power Supply, 9 to 36 VDC, Wide Range, Low Noise, Wide Operational Temperature (Optional AC Power, Universal Input 85 to 264 VAC) |
Wide Operational Temperatures | Standard -20° to +70°C (-4°F to 158°F) Optional -40° to +70°C (-40°F to 158°F) Storage Temperature -40° to +75°C (-40°F to 167°F) |
Dimensions | W = 13.85", H = 9.85", Depth = 2.59" |
Humidity | Operating: 0 to 100% |
Altitude | 10,000 ft. (optional 45,000 ft.) |
EMI / EMC | Designed to meet FCC Class B (optional MIL-STD-461E) |
Shock | Designed to meet MIL-S-901D |
Weight | 9 lbs. |
Vibration | Designed to meet MIL-STD-167 Designed to meet Marine IEC 60945 and IACS-E10 |
Environmental Design | Designed to meet MIL-STD-810F Airborne Equipment Environmental Conditions Designed to meet DO-160E MIL-L-85762A sunlight readability (air force - open canopy) MIL-C-22750 (CARC) Enclosure aluminum, black finish with Corrosion Protection All input connectors are rated for full submersion including: Power, VGA, Touch and BNC Composite Video and to ensure that each connector maintains its sealing, the socket is additionally tested for helium leakage (according MIL 1344A) |
Available | Optional MIL-DTL-38999 qualified - connectors MIL-STD-1275 wide range DC power input 9-36 VDC (12 VDC, 24 VDC, 28 VDC nominal) |
Cables | Length - 3m (9’10") each Available IP67 Connector (monitor end) Cables: Power Video - 15-pin D-Sub Touch (optional) - Serial or USB Direct Composite BNC Video Feed (optional) Touch Screen (optional) 5-Wire, Durable, Resistive OR Armor Touch |
Mounting | RAM/VESA Mounting - standard Flush Mounting - optional Console Mounting |
Electrical Protection | Internal Short Circuit Protection, Load Dump Protection, Over Voltage Protection, Reverse Polarity Protection Optional Connectors Optional "Right Angle" Connectors, MIL-DTL-38999 qualified - connectors MIL-STD-461E (FCC Class B is standard) |
Warranty | 2 years |
Bit-RDU Mobile LCD 15.0" All-Weather, All-Terrain, Harsh-Duty LCD Display System is waterproof (fully submersible) and engineered to withstand the harshest environments and most demanding real world applications. This high resolution (native XGA, 1024 x 768), is equipped with Bit-RDU Mobile LCD proprietary Enhanced Light Transmission Technology (ELTT) which allows for true Sunlight Readability and as well provides exceptional clarity and viewing angles. This advanced user friendly LCD display system provides extensive operational temperatures of -20° to +70°C (-4° to 158°F)(standard) or -40°C to 70°C (-40° to 158°F)(optional) and unprecedented video input capabilities from traditional VGA to up to FOUR individual direct composite BNC video feeds with easy one-touch toggle select function between all feeds!
Construction | IP67 (NEMA 6) Fully-Enclosed Submersible Machined 6061 T6 Aluminum |
Enclosure | Display Size – Viewable Area 15.0 inches |
Panel Type | Harsh Duty LCD cell w/ Optically Bonded Protective Overlay (VBOND) |
Resolution | XGA 1024 x 768 native |
Pixel Pitch | 0.297 x 0.297 |
Response Time | 18ms |
Brightness | True High Brightness 1950 nits (cd/m2) Low-Power, high reliability Solid State LED |
Backlighting | Backlight MTBF 65,000 hours |
Dimming Ratio | 1000:1 |
Backlight Driver | VarTech’s advanced VTLED driver technology, the latest in technology for driving solid state High Bright Light Emitting Diodes (HBLEDs) |
Viewing Envelope | Up/Dwn/L/R: 80°/60°/80°/80° |
Contrast Ratio | 600:1 |
Video Input | - IP67 Sealed VGA Connector for Computer interface OPTIONAL - IP67 Sealed Single VGA Connector, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single VGA Connector, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Single Composite BNC Feed for NTSC/PAL - IP67 Sealed Dual Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Three Separate Composite BNC Feed for NTSC/PAL - IP67 Sealed Four Separate Composite BNC Feed for NTSC/PAL - IP67 DVI Input only or with various combinations including VGA and BNC video feeds - Also available with MIL-DTL-38999 connectors COMING SOON, CALL - IP67 Sealed Dual VGA Connectors with/without Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Single Composite BNC Feed for NTSC/PAL, Optional Touch Interface - IP67 Sealed Dual VGA Connectors, Dual Composite BNC Feed for NTSC/PAL, Optional Touch Interface |
Video Controller | VarTech’s Harsh Environment Controller Board |
Electrical Input | Harsh Duty Variable Power Supply, 9 to 36 VDC, Wide Range, Low Noise, Wide Operational Temperature (Optional AC Power, Universal Input 85 to 264 VAC) |
Power Usage | Typical 35watts Maximum 55watts (58 watts w/heaters) Sleep mode 8watts |
Wide Operational Temperatures | Standard -20° to +70°C (-4°F to 158°F) Optional -40° to +70°C (-40°F to 158°F) Storage Temperature -40° to +75°C (-40°F to 167°F) |
Dimensions | W = 16", H = 11.75", Depth = 2.59" |
Humidity | Operating: 0 to 100% |
Altitude | 10,000 ft. (optional 45,000 ft.) |
EMI / EMC | Designed to meet FCC Class B (optional MIL-STD-461E) |
Shock | Designed to meet MIL-S-901D |
Weight | 12.5 lbs. |
Vibration | Designed to meet MIL-STD-167 Designed to meet Marine IEC 60945 and IACS-E10 |
Environmental Design | Designed to meet MIL-STD-810F Airborne Equipment Environmental Conditions Designed to meet DO-160E MIL-L-85762A sunlight readability (air force - open canopy) MIL-C-22750 (CARC) Enclosure aluminum, black finish with Corrosion |
Protection | All input connectors are rated for full submersion including: Power, VGA, Touch and BNC Composite Video and to ensure that each connector maintains its sealing, the socket is additionally tested for helium leakage (according MIL 1344A) Available Optional MIL-DTL-38999 qualified - connectors MIL-STD-1275 wide range DC power input 9-36 VDC (12 VDC, 24 VDC, 28 VDC nominal) |
Cables | Length - 3m (9'10") each Available IP67 Connector (monitor end) Cables: |
Power | Video - 15-pin D-Sub Touch (optional) - Serial or USB Direct Composite BNC Video Feed (optional) Touch Screen (optional) 5-Wire, Durable, Resistive OR Armor Touch |
Mounting | RAM/VESA Mounting - standard Flush Mounting - optional Console Mounting |
Electrical Protection | Internal Short Circuit Protection, Load Dump Protection, Over Voltage Protection, Reverse Polarity Protection |
Optional Connectors | Optional "Right Angle" Connectors MIL-STD-461E (FCC Class B is standard) |
Warranty | 2 years |
The Bit-RDU-1700-MOB Rugged Mobile Flat Panel Displays are built to meet the highest environmental standards. The NEMA4 / IP65 milled aluminum enclosures guarantees a high protection level against external environmental influences and ensures mechanical, electrical and esthetical preservation. The standard VESA attachment allows flexible mounting capabilities for different applications. IP65 compliant round connectors are used for all outside connections. The Bit Tradition GmbH RDU Displays are available with analog CRT and DVI as standard and S-Video / Video Composite interfaces as options.
| |
Size | 433 mm / 17” Industrial Grade TFT |
Resolution | 1280x1024 pxs native SXGA resolution with 24 Bit Color depth (16M Colors) |
Viewing Area | 433 mm diagonal active view area (338 mm x 270 mm) (~17”) |
Contrast Ratio | 1000:1 (typical) |
Response Time | 8ms (ton), 17ms (toff) |
Aspect Ratio | 4:3 aspect ratio |
Pixel Size | 0,264 mm pixel pitch |
Viewing Angle | -80° ~ +80° typ. (H), typ. -80° ~ +80° (V) |
Backlight | 250 cd/m² backlight with 2x CCFL (MTBF min. 50.000h) |
| |
Video Input | DVI Connector CRT (HD-15) Connector |
Power Input | 2mm Center Pin Power Jack |
Touch Panel | USB Type B / RS232 (D-Sub 9) |
Cabling | 3m Standard DVI Cable 3m Standard VGA Cable 3m Power Cable with open end |
OSD Menu | 5 Button OSD Keyboard on rear side with PiP Support |
| |
Supply Voltage DC | 8V-32V DC Input |
DC Filter | MIL-STD-1275B compliant Filter (as Option) |
| |
Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment, dark gray powder coating |
Outside Dimensions | ~420 mm (w) x ~350 mm (h) x ~45 mm (d) |
Mounting Points | VESA 100 |
TFT Protection | Hardened non-reflecting protection glass |
Weight | Approx. 4 kg (w/o cabling) |
| |
Temperature | 0°C to 50°C Operating -20°C to 60°C Non-Operating |
Humidity | 90% rh Non-Condensating |
Operating Altitude | 10 kft Operating 15 kft Non-Operating (without transport container) |
Vibration | 1,5g, 10-300Hz, Sweep Rate 10 min., 30min X/Y/Z Achse |
Shock | 50g, 11ms, Sinus, X/Y/Z Achse |
IP Protection | Front IP65 (DIN EN 60259 / IEC 529) / Rear Side IP22 (DIN EN 60259 / IEC 529) |
| |
CE | In Compliance to Directive 89/336/EEC amended by Directive 91/263/EEC, Directive 92/31/EEC and Directive 93/68/EEC |
Emissions | EN 55022:1998 +A1:2000 class A EN 61000-3-2:2000 EN 61000-3-3:1995 +A1:2001 |
Immunity | EN 55024:1998 +A1:2001 EN 61000-4-2: 1995 + A2: 2000 ESD EN 61000-4-3: 1995 +A2: 2000 Radiated Field EN 61000-4-4: 1995 +A1: 2000 Burst EN 61000-4-5: 1995 +A1: 2000 Surge EN 61000-4-6: 1996 +A1: 2000 Conducted disturbances EN 61000-4-8: 2001 Power freq. magn. field EN 61000-4-11: 2001 Voltage dips &interruptions |
| |
Art.Nr. 0000xxxx | BIT-RDU-1700-MOB |
Art.Nr. 0000xxxx | Option Full IP65 (includes IP65 Round Connector and Cabling) |
Art.Nr. 0000xxxx | Option Resistive Touch Panel USB |
Art.Nr. 0000xxxx | Option Resistive Touch Panel RS232 |
Art.Nr. 0000xxxx | Option DC MIL-1275B Filter |
Art.Nr. 0000xxxx | Option Cable Upgrade to 5m |
Art.Nr. 0000xxxx | Option Cable Upgrade to 10m (only for DVI and RS232 Interface) |
Art.Nr. 0000xxxx | Option Video Interface |
The Bit-RDU-1900-Panel Rugged Mobile Flat Panel Displays are built to meet the highest environmental standards. The NEMA4 / IP65 milled aluminum enclosures guarantees a high protection level against external environmental influences and ensures mechanical, electrical and esthetical preservation. The standard VESA attachment allows flexible mounting capabilities for different applications. IP65 compliant round connectors are used for all outside connections. The Bit Tradition GmbH RDU Displays are available with analog CRT and DVI as standard and S-Video / Video Composite interfaces as options.
| |
Size | 482 mm / 19” Industrial Grade TFT |
Resolution | 1280x1024 pxs native SXGA resolution with 24 Bit Color depth (16M Colors) |
Viewing Area | 482 mm diagonal active view area (376 mm x 301 mm) (~19”) |
Contrast Ratio | 1000:1 (typical) |
Response Time | 8ms (ton), 17ms (toff) |
Aspect Ratio | 4:3 aspect ratio |
Pixel Size | 0,264 mm pixel pitch |
Viewing Angle | -80° ~ +80° typ. (H), typ. -80° ~ +80° (V) |
Backlight | 250 cd/m² backlight with 2x CCFL (MTBF min. 50.000h) |
| |
Video Input | DVI Connector CRT (HD-15) Connector |
Power Input | 2mm Center Pin Power Jack |
Touch Panel | USB Type B / RS232 (D-Sub 9) |
Cabling | 3m Standard DVI Cable 3m Standard VGA Cable 3m Power Cable with open end |
OSD Menu | 5 Button OSD Keyboard on rear side with PiP Support |
| |
Supply Voltage DC | 8V-32V DC Input |
DC Filter | MIL-STD-1275B compliant Filter (as Option) |
| |
Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment, dark gray powder coating |
Outside Dimensions | 482 mm x 444,5 mm (10HE) x ~50 mm (19” Rack Version) ~482 mm (w) x ~410 mm (h) x ~50 mm (d) (Panel Version) |
Mounting Points | Panel or 19” Rack |
TFT Protection | Hardened non-reflecting protection glass |
Weight | Approx. 5 kg (w/o cabling) |
| |
Temperature | 0°C to 50°C Operating -20°C to 60°C Non-Operating |
Humidity | 90% rh Non-Condensating |
Operating Altitude | 10 kft Operating 15 kft Non-Operating (without transport container) |
Vibration | 1,5g, 10-300Hz, Sweep Rate 10 min., 30min X/Y/Z Achse |
Shock | 50g, 11ms, Sinus, X/Y/Z Achse |
IP Protection | Front IP65 (DIN EN 60259 / IEC 529) / Rear Side IP22 (DIN EN 60259 / IEC 529) |
| |
CE | In Compliance to Directive 89/336/EEC amended by Directive 91/263/EEC, Directive 92/31/EEC and Directive 93/68/EEC |
Emissions | EN 55022:1998 +A1:2000 class A EN 61000-3-2:2000 EN 61000-3-3:1995 +A1:2001 |
Immunity | EN 55024:1998 +A1:2001 EN 61000-4-2: 1995 + A2: 2000 ESD EN 61000-4-3: 1995 +A2: 2000 Radiated Field EN 61000-4-4: 1995 +A1: 2000 Burst EN 61000-4-5: 1995 +A1: 2000 Surge EN 61000-4-6: 1996 +A1: 2000 Conducted disturbances EN 61000-4-8: 2001 Power freq. magn. field EN 61000-4-11: 2001 Voltage dips &interruptions |
| |
Art.Nr. 0000xxxx | BIT-RDU-1900-Panel |
Art.Nr. 0000xxxx | BIT-RDU-1900-Rack |
Art.Nr. 0000xxxx | Option Full IP65 (includes IP65 Round Connector and Cabling) |
Art.Nr. 0000xxxx | Option Resistive Touch Panel USB |
Art.Nr. 0000xxxx | Option Resistive Touch Panel RS232 |
Art.Nr. 0000xxxx | Option DC MIL-1275B Filter |
Art.Nr. 0000xxxx | Option Cable Upgrade to 5m |
Art.Nr. 0000xxxx | Option Cable Upgrade to 10m (only for DVI and RS232 Interface) |
Art.Nr. 0000xxxx | Option Video Interface |
The Bit-RDU-2100-MOB Rugged Mobile Flat Panel Displays are built to meet the highest environmental standards. The NEMA4 / IP65 milled aluminum enclosures guarantees a high protection level against external environmental influences and ensures mechanical, electrical and esthetical preservation. The standard VESA attachment allows flexible mounting capabilities for different applications. IP65 compliant round connectors are used for all outside connections. The Bit Tradition GmbH RDU Displays are available with analog CRT and DVI as standard and S-Video / Video Composite interfaces as options.
| |
Size | 540mm / 21.2” Industrial Grade TFT |
Resolution | 1600 x 1200 pxs native UXGA resolution with 16M colours |
Viewing Area | 540mm diagonal active view area (432mm x 324mm) (~21.2”) |
Aspect Ratio | 4:3 aspect ratio |
Pixel Size | 0,27mm pixel pitch |
Viewing Angle | 85° typ. viewing angle all 4 axis |
Backlight | 250 cd/m² backlight with 6 CCFL tubes |
| |
Input VGA / CRT | VGA interface on IP65 Round-Connector |
Input DVI | DVI interface on IP65 Round-Connector |
Input Video | SHVS interface and Composite interface on IP65 Round-Connector as factory option |
OSD | OSD Keyboard on Backside of unit |
PiP | PiP function via OSD |
Scaler | Zoom and shrink scaling Frame rate conversion for VGA and Video inputs Auto-Configuration / Auto-Detection for Phase and image positioning and Input format detection |
HDCP | No |
| |
Supply Voltage | 8V-32V DC input (with MIL1275B filter as factory option) on IP65 Round Connector |
Power Consumption | approx. 40 Watt maximum power input requirement |
| |
Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment Black powder coating500mm x 390mm x 75mm outside dimension (without MIL connectors on backside) |
Outside Dimensions | Hardened non-reflecting protection glass |
TFT Protection | 540mm diagonal active viewing area (432mm x 324mm) |
VESA Mounting | VESA Mounting points for 100mm x 100mm (4x M4x10 screws) and 200mm x 100mm (6x M4x10mm screws) |
Weight | Approx. 10 kg |
| |
Operating Temperature | 0° to 55° C |
Storage Temperature | -20° to +60° C |
Operating Altitude | 4.850m |
Storage Altitude | 13.600m |
Vibration | 5 to 100Hz, 11.76m/s2, 1 minute/cycle, X, Y, Z direction, 10 times each directions |
Shock | 294m/ s2, 11ms, X, Y, Z direction, 3 times each directions |
IP Protection | IP65 (DIN EN 60259 / IEC 529) / NEMA4 |
| |
Art.Nr. 00001832 | RDU-2100-MOB |
Art.Nr. 00001833 | DC Power Cable 3m with open end |
Art.Nr. 00001834 | DC Power Cable 5m with open end |
Art.Nr. 00001835 | DC Power Cable 10m with open end |
Art.Nr. 00001836 | CRT Cable 3m to HDSUB15 commercial plug |
Art.Nr. 00001837 | CRT Cable 5m to HDSUB15 commercial plug |
Art.Nr. 00001838 | DVI Cable Single-Link 3m to DVI commercial plug |
Art.Nr. 00001839 | DVI Cable Single-Link 5m to DVI commercial plug |
Art.Nr. 00001840 | DVI Cable Single-Link 10m to DVI commercial plug |
Art.Nr. 00001841 | DVI Cable Single-Link 5m to Bit-IPC-0022D-1H5 HID Connector |
Art.Nr. 00001842 | DVI Cable Single-Link 10m to Bit-IPC-0022D-1H5 HID Connector For other Cable configuration please consult factory |
Art.Nr. 00001843 | MIL1275B Input Filter (only as factory option) |
The Bit-RDU-25W00-MOB Rugged Mobile Flat Panel Displays is built to meet the highest environmental standards. The NEMA4 / IP65 milled aluminum enclosure guarantees for a high protection level against external environmental influences and ensures mechanical, electrical and esthetical preservation. The standard 200x100 heavy duty VESA attachment allows flexible mounting capabilities for different applications. IP65 compliant round connectors are used for all outside connections. The Bit Tradition GmbH RDU Displays are available with analog CRT and DVI as standard and S-Video / Video Composite interfaces as options.
| |
Size | 648mm / 25.54” Wide Screen Industrial Grade TFT |
Resolution | 1920 x 1200 pxs. native WUXGA resolution with 16M colors |
Viewing Area | 648mm diagonal active view area (550mm x 343.8mm) (~25.54”) |
Aspect Ratio | 16:10 aspect ratio |
Pixel Size | 0,286mm pixel pitch (~88 dpi) |
Viewing Angle | 88° typ. viewing angle all 4 axis (176°/176°) |
Backlight | typ. 350 cd/m² backlight with 8 CCFL tubes |
Contrast | typ. 1500:1 |
| |
Input VGA / CRT | VGA interface on IP65 Round-Connector |
Input DVI | Dual-Link DVI interface on IP65 Round-Connector |
Input Video | SHVS interface and Composite interface on IP65 Round-Connector as factory option |
OSD | OSD Keyboard on Backside of unit |
PiP | PiP function via OSD |
Scaler | Zoom and shrink scaling Frame rate conversion for VGA and Video inputs Auto-Configuration / Auto-Detection for Phase and image positioning and Input format detection |
HDCP | No |
| |
Supply Voltage | 8V-32V DC input (with MIL1275B filter as factory option) on IP65 Round Connector |
Power Consumption | approx. 110 Watt maximum power input requirement |
| |
Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment Black powder coating |
Outside Dimensions | ~620mm x ~415mm x ~75mm outside dimension (without MIL connectors on backside) (Values are only for Draft) |
TFT Protection | Hardened non-reflecting protection glass |
VESA Mounting | VESA Mounting points for 100mm x 100mm (4x M4x10 screws) and 200mm x 100mm (6x M4x10mm screws) |
Weight | Approx. 10 kg |
| |
Operating Temperature | 0° to 50° C (-30°C to +55° C – optional in working condition) |
Storage Temperature | -30° to +60° C |
Operating Altitude | 4.850m |
Storage Altitude | 13.600m |
Vibration | 10 to 300Hz, 1.5G, 10 minute/cycle, X, Y, Z direction, 3 times each directions |
Shock | 40G, 11ms, half sine wave, X, Y, Z direction, 1 times each directions |
IP Protection | IP65 (DIN EN 60259 / IEC 529) / NEMA4 |
| |
Art.Nr. TBD | RDU-25W00-MOB |
Art.Nr. TBD | RDU-25W00 Video Composite Option (max. 2x per unit) |
Art.Nr. TBD | RDU-25W00 S-Video Option |
Art.Nr. TBD | DC Power Cable 3m with open end |
Art.Nr. TBD | DC Power Cable 5m with open end |
Art.Nr. TBD | DC Power Cable 10m with open end |
Art.Nr. 00001836 | CRT Cable 3m to HDSUB15 commercial plug |
Art.Nr. 00001837 | CRT Cable 5m to HDSUB15 commercial plug |
Art.Nr. TBD | DVI Cable Dual-Link 3m to DVI commercial plug |
Art.Nr. TBD | DVI Cable Dual-Link 5m to DVI commercial plug |
Art.Nr. TBD | DVI Cable Dual-Link 10m to DVI commercial plug |
Art.Nr. TBD | DVI Cable Dual-Link 5m to Bit-IPC-0022D-1H5 HID Connector |
Art.Nr. TBD | DVI Cable Dual-Link 10m to Bit-IPC-0022D-1H5 HID Connector For other Cable configuration please consult factory |
Art.Nr. 00001843 | MIL1275B Input Filter (only as factory option) |
Home
