Features:

Convertible Notebook to Tablet Design
Sunlight-viewable Up to 6000 Nit in Direct Sunlight
Full Magnesium Alloy Case with Hand Strap
Shock-mounted Flex-connect Hard Drive with Quick-release
Choice of 3G Gobi™ or 4G LTE Mobile Broadband

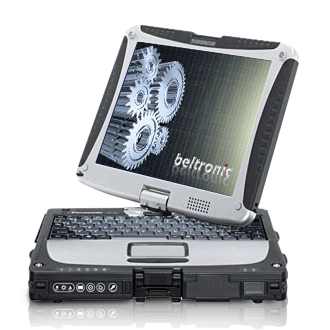

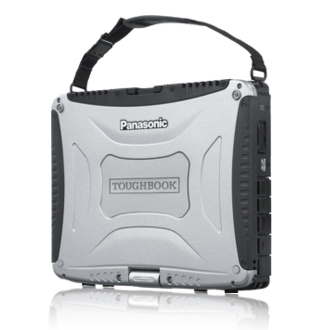

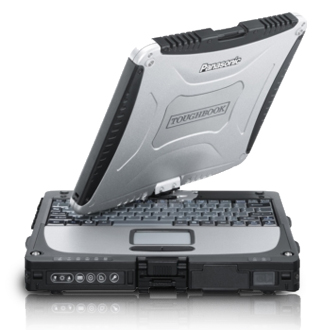

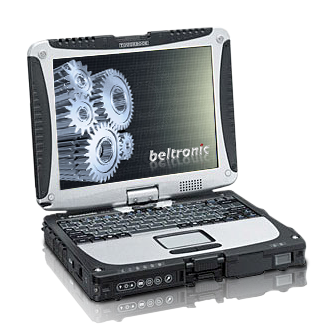

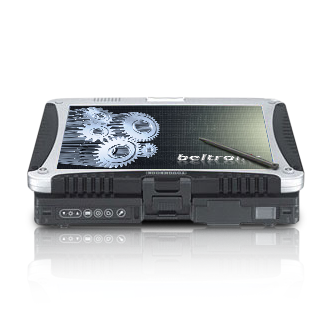

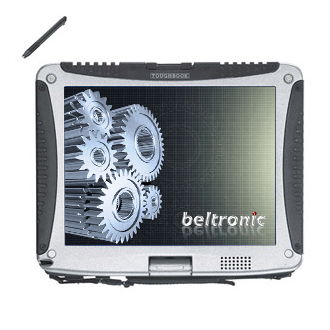

Toughbook CF19

Fully-Rugged Laptop Convertible Tablet

Durability	MIL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/ thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)₁ MIL-STD-461F certified1 IP65 certified sealed all-weather design1 UL1604 class I division 2, groups ABCD certified model CCX Certified v4 Hard drive heater Full magnesium alloy case with hand strap Shock-mounted flex-connect hard drive with quick-release Pre-installed replaceable screen film for LCD protection
Software	Genuine Windows® 7 Professional 32-bit₂ or Genuine Windows® 7 Professional 64-bit₂ Panasonic Utilities, Panasonic Dashboard, Recovery Partition
CPU₅	Intel® Core™ i5-2520M vPro™ Processor – 2.5GHz with Turbo Boost up to 3.2GHz – Intel® Smart Cache 3MB
Storage & Memory	4GB SDRAM (DDR3-1333MHz) standard, expandable to 8GB4,5 320GB 7200rpm hard drive (shock-mounted flex-connect with quick-release)₅ – Optional 128GB and 256GB reinforced flex-connect solid state drives (SSD)₅
Display	10.1" XGA sunlight-viewable LED 1024 x 768 (touchscreen or optional dual touch) – TransflectivePlus and Panasonic CircuLumin™ technology – 1-6000 nit (depending on lighting conditions and settings)₆ – AR, AG and circular polarizer Intel® QM67 video controller, max. 1557MB shared VRAM with 32-bit₄ External video support up to 1280 x 1024 at 16.7 million colors Concealed mode
Audio	Intel® high-definition audio compliant Integrated speaker Keyboard volume and mute controls
Keyboard & Input	Touchscreen or dual touch (touchscreen and digitizer models) Integrated stylus holder 82-key with dedicated Windows® key Pressure-sensitive touchpad with vertical scrolling support
Expansion Slots	PC card type II x 1 SD card (SDXC) ExpressCard/54 x 1
Interface	Docking connector - Dedicated 100-pin VGA - D-sub 15-pin Headphones/speaker - Mini-jack stereo Microphone/line in - Mini-jack stereo Serial D-sub - 9-pin Ext. antenna conn. (x 2) - 50 ohm coaxial USB 2.0 (x 2) - 4-pin IEEE 1394a (FireWire) - 4-pin 10/100/1000 Ethernet - RJ-45 56K Modem - RJ-11
Wireless	Optional integrated LTE 4G mobile broadband Optional integrated Gobi™2000 3G mobile broadband Intel® Centrino® Advanced-N 6205 802.11a/b/g/n Bluetooth® v2.1 + EDR (Class 1) Security – Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP – Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES Dual high-gain antenna pass-through Slide on/off switch
Power Supply	Lithium ion battery pack (11.1V, typical 5600mAh, minimum 5300mAh) Battery operation: 9 hours (touchscreen), 8.5 hours (dual touch)₇ Battery charging time: 3.5 hours₇ AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply
Power Management	Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
Security Features	Password Security: Supervisor, User, Hard Disk Lock Kensington cable lock slot Trusted platform module (TPM) security chip v.1.2 Computrace® theft protection agent in BIOS8 Intel® Anti-Theft Technology Optional fingerprint reader Optional SmartCard reader
Warranty	3-year limited warranty, parts and labor
Dimensions & Weight	8.5"(L) x 10.7"(W) x 1.9"(H) 5.1 lbs.
Integrated Options₉	LTE 4G mobile broadband Gobi™2000 3G mobile broadband (EV-DO Rev. A, HSPA) 2.0MP camera with auto focus and dual LED light10 GPS receiver Backlit keyboard – sealed rubber or plastic emissive SmartCard reader Fingerprint reader HDD and battery lock
Accessoires₉	AC Adapter (3-prong) CF-AA6503A2M AC Adapter MIL-461F (3-prong) - CF-AA5713AM Lithium Ion Battery Pack11 - CF-VZSU48U Battery Charger - CF-VCBTB2W LIND 5-Bay Battery Charger - PACH518-1858-P LIND Car Adapter 120W - CF-LNDDC120 LIND Car Adapter 120W Mounting Bracket - CF-LNDBRK120 LIND Car/AC Adapter 90W (with USB port) - CF-LNDACDC90 LIND Car Adapter 90W MIL-STD - CF-LNDMLDC90 LIND Car Adapter 80W - CF-LNDDC80 LIND Shutdown Timer - CF-LNDLPT InfoCase ComUniversal Jr. Carrying Case - TBCCOMUJR-P InfoCase Backpack - TBCBPK-P InfoCase Always-on 19 Case - TBC19AOCS-P InfoCase 19 “X” Hand Strap - TBC19XSTP-P InfoCase Shoulder Strap - TBCTMSS-P External USB Combo Drive (DVD-ROM/CD-RW) - CF-VDRRT3U Memory Cards – 4GB DDR3 - CF-WMBA1004G Desktop Dock - CF-VEB191AU Vehicle Dock – No pass-through - See Dealer – Dual pass-through - CF-WEB194AC Dual Touch Replacement Stylus (for Digitizer) - CF-VNP012U Touchscreen Replacement Stylus - CF-VNP003U Tether - CF-VNT002U 10.4" LCD Protector Film for Touchscreen and Dual Touch - CF-VPF11U
Please consult your reseller or Panasonic representative before purchasing. ₁ Tested by national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit drop test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65. ₂A full set of Windows XP drivers are available at panasonic.com/toughbook/support. ₃An Intel Core i7 processor is also available. ₄ Total usable memory will be less depending upon actual system configuration. Maximum of 4GB of memory when equipped with camera. Windows 7 64-bit max. VRAM is 1696MB with 4GB of memory. ₅1GB = 1,000,000,000 bytes. ₆ 1000 nit without ambient light assistance. Up to 6000 nit in clear, sunny conditions under direct sunlight. ₇ Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used.Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2007. ₈Requires software and activation to enable theft protection. ₉ Accessories and Integrated Options may vary depending on your notebook configuration. ₁₀ Camera replaces the second memory slot located on the bottom of the PC. ₁₁ 10.65V, 5700mAh.
