- All Aluminum Construction
- Built-in 17" TFT LCD Screen with 1440x900
- mATX platform
- Full length PCI-e and PCI configuration
- Shock-mountated drive bays
- Detachable keyboard
- Transflective technology Sunlight readable LCD (optional)
- A/D board Chipset GENESIS 5621GENESIS 1601

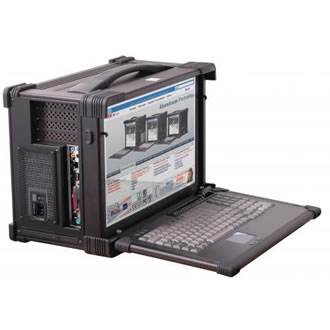

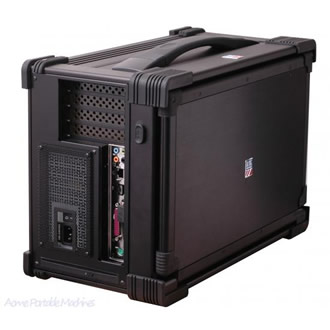

The Bit-RPC 1734-i7-Server is a robust lunchbox computer built using heavy duty metal to provide tough, go-anywhere unit ideally suitable for harsh/severe environments and mission critical applications. With passive backplane board configurations to choose from the available full length expansion slots of the Bit-RPC 1734-i7-Server can be freely configured with other uniquely designed expansions cards for most applications.
Also desiged for harsh environment operations, the LCD screen of the Bit-RPC 1734-i7-Server is guarded with a specially treated anti-glare tempered glass for added protection. Every Bit-RPC 1734-i7-Server comes equipped with dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. Functional practicality combined with the simple and polished design, the Bit-RPC 1734-i7-Server with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your mission critical applications.
Compliance | |
Quality | ISO 9001 |
Approvals | CE, FCC, CCC, ROHS |
Shock | Operating: 10g, 11ms, Half-Sine |
Vibration | Operating: 10-500Hz (0.4Grms) Non-Op: 10-500Hz (1.12Grms) |
Specification | |
Chipset | Intel Q57 Chipset |
Slot | 1x PCI-E (x16 N/A if using i7 860) 1x PCI-E (x4) 1x PCI-E (x1) 1x PCI |
IDE | 1x |
RAID Internal | Yes (0, 1, 5, 10) |
CPU | Intel i7 860 (2.8GHz Quad Core) or Intel i5 660 (3.33GHz Dual Core0 |
Memory | 4GB DDR3 Memory |
Audio | 7.1 Channel Audio |
USB 2.0 | 14x USB 2.0 Port |
LAN | Dual Intel Gigabit Ethernet |
Power | 650W, 110-220VAC, 50/60Hz |
VGA | Intel GMA Q35 (RGB) |
HDD | 6x SATA Port (2 Used) |
Optical | 1x DVD-RW 1x 250GB 2.5" SATAII HDD |
Drive Bay | 2 x 5.25” + 1 x 3.5” open |
O/S | Windows 7 Pro |
Video: | nVidia 9400GT (Used if using i7 860) or Intel HD Gfx (Used if using i5 660) |
Dimension / Weight | 12.01”H x 17.25”W x 8.9”D / 26 Lbs |
